Common High Chrome Cast Grinding Balls

Our high chrome cast grinding balls provide high hardness and long-lasting wear resistance for demanding wet and dry grinding operations.

Key Specifications

  • Chromium Content: ≥10%
  • Hardness: ≥HRC 58
  • Available Sizes: φ4.98–130 mm
  • Microstructure: Martensitic matrix with chromium carbides

Applications

  • Mineral Processing
  • Non-Ferrous Metal Mining
  • Cement Clinker Grinding
  • Semi-Autogenous Mill Grinding
  • Hard Sand & Gravel Grinding
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

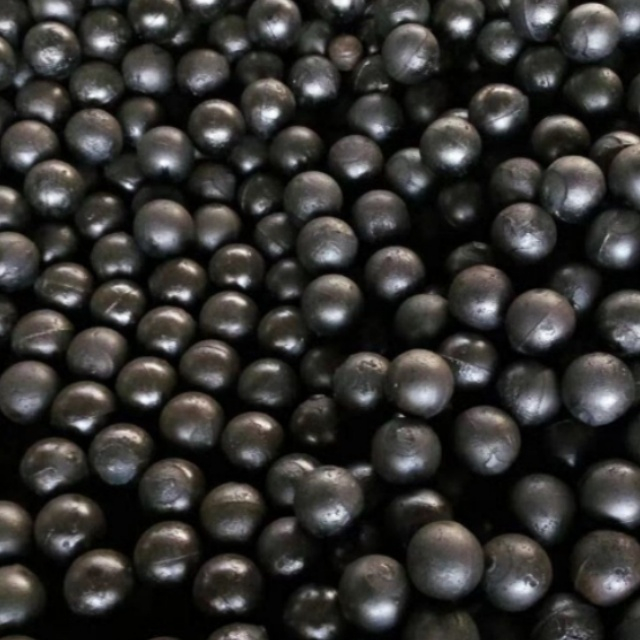

Standard High-Chromium Cast Steel Balls

1. Exceptional wear resistance:
With a chromium content of ≥10 per cent and a high proportion of hard chromium carbides, these steel balls exhibit significantly lower wear rates than low-chromium or medium-chromium steel balls, substantially reducing the frequency of ball replenishment and minimising mill downtime for maintenance. Following a complete quenching and tempering heat treatment process, the matrix features a martensitic microstructure with minimal variation in hardness between the surface and core, and a HRC hardness of ≥58.
2. Impact Resistance and Corrosion Resistance:
Excellent toughness enables withstanding high-impact operating conditions; strong resistance to slurry corrosion ensures outstanding performance in both wet and dry grinding, making it suitable for wet mineral processing and the grinding of hard ores. Strict control of sulphur (S) and phosphorus (P) impurities significantly reduces the likelihood of ball rupture and chipping.

3. Application Suitability:

Widely used in mineral processing, non-ferrous metal mining, cement clinker production, ball milling in large semi-autogenous mills, and the grinding of hard materials such as sand and gravel. Disadvantages: Raw material costs are relatively high, making it unsuitable for lightly abrasive applications where cost is a critical factor.
4. Production and Delivery:
A full range of sizes from Φ4.98 mm to Φ130 mm is available, with support for customer-specified size ratios; material test reports are provided for each batch; export packaging in tonne bags and steel drums is available to meet the requirements of large-volume international orders.
ElementStandard Content RangeInternal Control RequirementComposition Control Description
C (Carbon)2.2 ~ 3.42.5 ~ 3.2Combines with chromium to form high-hardness chromium carbides, the core source of wear resistance; too high carbon reduces toughness, too low results in insufficient wear resistance
Si (Silicon)0.4 ~ 1.00.5 ~ 0.8Deoxidizes and purifies molten iron, improves casting fluidity; excessive content increases matrix brittleness
Mn (Manganese)0.6 ~ 1.20.7 ~ 1.0Stabilizes austenite, refines grains, assists in improving impact toughness; cooperates with quenching process to ensure hardness uniformity
Cr (Chromium)≥10.0 (commonly 10~18)Precisely controlled by grade (Cr10/Cr12/Cr15/Cr18)Core alloying element; the key indicator distinguishing high-/medium-/low-chromium balls; forms M₇C₃-type hard carbides, significantly improving wear and corrosion resistance
P (Phosphorus)≤0.06≤0.05Harmful impurity; segregation at grain boundaries greatly increases brittleness, strictly controlled to reduce cracking and chipping risks
S (Sulfur)≤0.04≤0.03Harmful impurity; easily forms sulfide inclusions, strictly controlled to ensure matrix compactness and impact toughness
