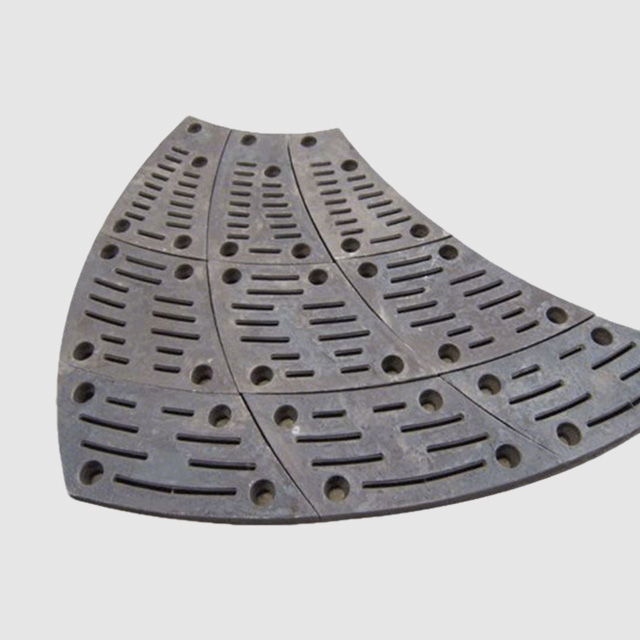

Mill Liners are wear-resistant components installed inside grinding mills to protect the mill shell from continuous impact, abrasion and material wear during operation. In addition to protecting the equipment structure, properly designed liners also influence the movement of grinding media and materials inside the mill, helping maintain stable grinding performance and extend equipment service life.
Ningguo Jinqiao specializes in manufacturing high quality Mill Liners using wear-resistant alloy materials, controlled casting processes and heat treatment technology. Designed for demanding mining, cement, metallurgy and mineral processing applications, Jinqiao Mill Liners provide a suitable balance of hardness, impact resistance, abrasion resistance and structural stability.
Different mill sizes, processed materials and operating conditions require different liner materials and structural designs. Ningguo Jinqiao provides customized Mill Liner solutions according to equipment specifications and working environments. Combined with suitable grinding media such as Grinding Balls, the liner system can help improve mill protection, grinding stability and overall operating efficiency.
During grinding operations, Mill Liners do more than protect the mill shell. Their material properties, profile and arrangement can affect grinding media movement, material lifting behavior, impact energy and the overall efficiency of the grinding process.
Ningguo Jinqiao develops Mill Liners with mechanical properties and structural designs suited to demanding industrial applications:
| Performance Feature | Customer Benefits |
|---|---|
| High impact resistance | Helps protect the mill shell against repeated impact from grinding media and materials |
| Strong wear resistance | Helps extend liner service life and reduce replacement frequency |
| Optimized liner profile | Supports appropriate material lifting and grinding media movement |
| Stable structural performance | Maintains reliable protection during continuous grinding operations |
| Customized specifications | Allows the liner system to match different mill dimensions and operating conditions |
Selecting the right liner material and design can help reduce unplanned downtime, maintain stable grinding conditions and lower long-term maintenance costs.
Mill Liner material selection depends on the balance required between hardness, abrasion resistance and impact toughness. Highly abrasive applications may require higher wear resistance, while high-impact environments generally require sufficient toughness to reduce cracking or premature failure.
| Mill Liner Type | Main Characteristics | Typical Applications |
|---|---|---|
| High Manganese Steel Liners | Strong impact toughness and work-hardening performance | High-impact grinding conditions |
| Chrome Molybdenum Alloy Liners | Balanced hardness, toughness and abrasion resistance | Ball mills and demanding mineral grinding applications |
| High Chrome Wear-Resistant Liners | High hardness and strong resistance to abrasive wear | High-abrasion grinding environments |
| Composite Mill Liners | Combines different materials or reinforced structures for specific wear conditions | Specialized mill and severe wear applications |
| Customized Mill Liners | Designed according to mill dimensions, material characteristics and operating conditions | Application-specific grinding systems |

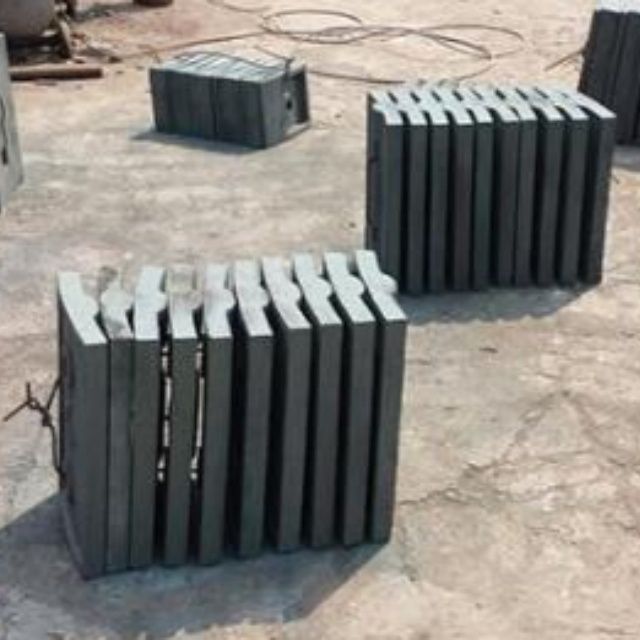

Jinqiao also manufactures different liner materials for specific mill conditions. For applications requiring high impact toughness, customers can explore High Manganese Steel Liners.

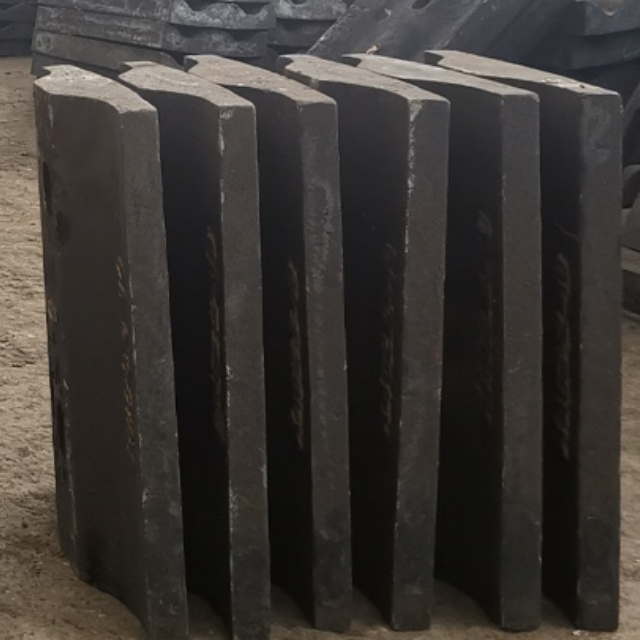

For grinding environments requiring a balance between abrasion resistance and mechanical toughness, Chrome Molybdenum Alloy Mill Liners provide another suitable liner option.

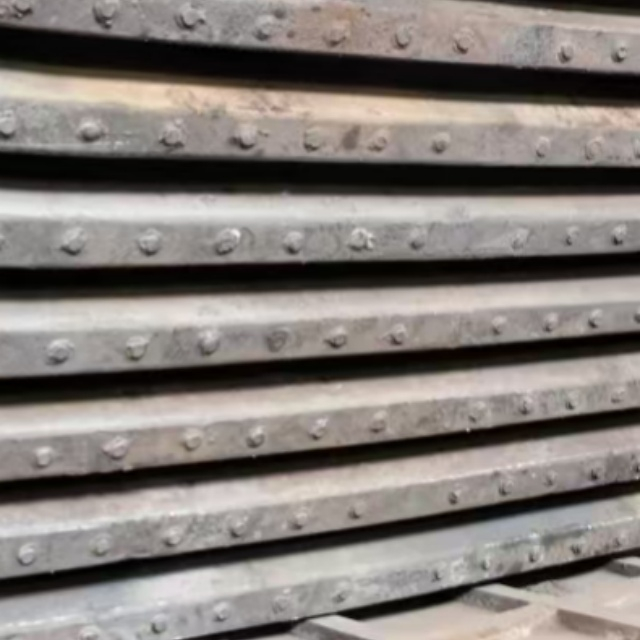

In specialized wear conditions, Titanium Carbide Composite Mill Liners can provide reinforced wear resistance for demanding applications.
Choosing Mill Liners should be based on the actual mill configuration and operating conditions rather than material hardness alone. A liner that is too hard for a high-impact application may be more susceptible to cracking, while insufficient wear resistance can lead to rapid liner loss and frequent maintenance.
Important factors to consider include:
Mill type and size: Ball mills and other grinding equipment may require different liner dimensions, profiles and fastening structures.
Processed material: Ore hardness, abrasiveness and particle size influence liner wear mechanisms.
Impact level: High-impact zones require sufficient toughness to control cracking and breakage.
Abrasion intensity: Severe abrasive conditions require materials with stronger wear resistance.
Grinding media size: Ball diameter and media loading affect impact energy applied to the liner surface.
Wet or dry operation: Slurry, corrosion, temperature and moisture can influence liner wear behavior.
Ningguo Jinqiao can evaluate mill specifications, grinding media conditions and processed materials to recommend suitable liner materials and configurations for different industrial applications.
Ningguo Jinqiao focuses on the development and manufacturing of wear-resistant castings for grinding and crushing equipment. Through material formulation, casting, heat treatment and quality inspection, Jinqiao provides Mill Liners designed for stable performance under demanding operating conditions.
Jinqiao Mill Liners are designed to provide:
Reliable resistance to impact and abrasive wear
Extended replacement intervals under suitable operating conditions
Stable protection for the mill shell
Different alloy and composite material options
Customized liner dimensions and structural designs
Solutions for mining, cement and mineral processing applications
For projects with specific mill dimensions or operating conditions, customers can also explore Jinqiao’s Custom Wear-Resistant Casting Services for application-specific liner materials and specifications.
Mill Liners are widely used in grinding systems where continuous impact and abrasion can cause significant wear to the mill shell. Typical application areas include:
Mining and mineral processing
Cement clinker and raw material grinding
Metallurgical production
Iron ore and non-ferrous ore processing
Power plant material grinding
Limestone and other industrial mineral processing
Mill Liners work directly with grinding media during operation. Selecting compatible Grinding Balls can help establish a more stable combination of impact energy, wear resistance and grinding efficiency.
For applications requiring cylindrical grinding media, customers can also consider Grinding Cylpebs for fine and ultra-fine grinding processes.
Mill Liners can operate under both wet and dry grinding conditions, but wear mechanisms differ between these environments. Wet grinding systems may expose liners to slurry abrasion, corrosion and continuous particle contact, while dry grinding systems often involve repeated impact, friction and elevated operating temperatures.
The appropriate liner material should therefore be selected according to actual operating conditions. High-impact zones may require stronger toughness, while high-abrasion zones may benefit from harder wear-resistant alloys or reinforced composite structures.
Ningguo Jinqiao provides Mill Liners in different materials, structures and specifications for industrial grinding systems. Customers can provide mill dimensions, liner drawings, processed material information and operating conditions to discuss a suitable wear-resistant liner solution.
