Key Characteristics and Competitive Advantages
1. Dense microstructure achieved through forging, resulting in a low breakage rate

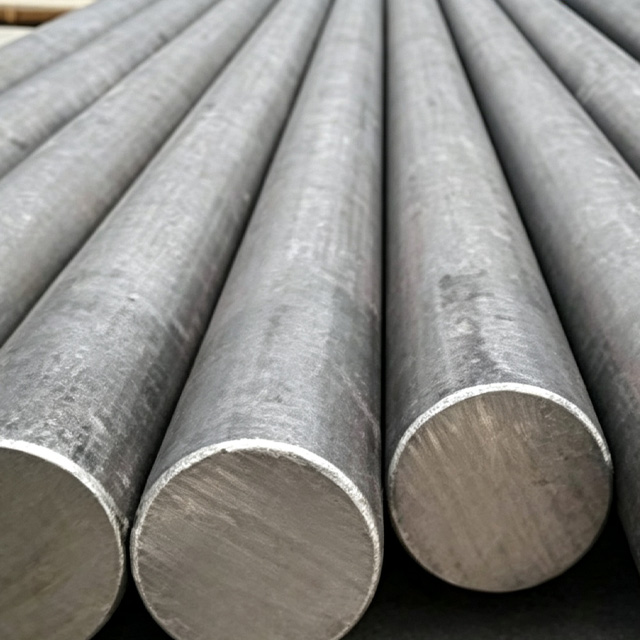

The base material is rolled round bar, which undergoes continuous plastic forging to achieve a metal density approaching 100 per cent, thereby completely eliminating internal defects such as shrinkage cavities, porosity, inclusions and compositional segregation. The grain structure is refined and extended along the spherical surface, resulting in excellent resistance to impact fatigue. Under normal operating conditions, fragmentation or chipping is virtually non-existent, thereby eliminating production risks such as blockages in the discharge grate caused by broken balls or scratches on the lining plates. This makes them particularly suitable for high-impact, continuous production scenarios in large mills.
2. Homogeneous hardening across the entire cross-section, uniform wear and low loss of roundness
The forged steel exhibits excellent hardenability; combined with integral tempering heat treatment, the balls maintain uniform hardness from the surface to the core. During wear, the ball surface wears down uniformly and synchronously, consistently retaining a regular spherical shape. Common issues such as localised pitting, one-sided wear or out-of-round deformation are prevented, resulting in a longer effective grinding cycle. The media gradation within the mill remains stable over the long term, significantly reducing operational downtime for ball replenishment and gradation adjustments.
3. High toughness and impact resistance, suitable for coarse grinding operations with large drop heights
The forged matrix exhibits significant toughness, enabling it to withstand high-frequency impact loads at large drop heights within semi-autogenous mills and large primary ball mills, without suffering brittle fractures or shattering due to hard impacts. This makes it ideal for coarse grinding stages involving hard ores such as iron, copper and gold.
4. High dimensional accuracy, consistent roundness and precise particle size distribution
Formed through continuous die rolling, the diameter tolerance of the balls is controlled within ±0.2 mm. They feature high roundness, are free from flash and gate residues, and exhibit minimal variation in individual ball weight. The particle size distribution of the grinding media within the mill is precisely controllable, resulting in a more stable particle size distribution during the grinding process, a higher yield of conforming product, and the avoidance of fluctuations caused by over-grinding or under-grinding due to size variation.
5. Smooth, defect-free surface, gentler on mill liners
The spherical surface is smooth and free from defects such as casting sand holes, protrusions and sharp edges. During operation, it exerts gentle rolling friction on the mill liners, avoiding scraping damage caused by burrs, thereby effectively extending the service life of the liners and reducing the overall cost of equipment consumables.
