Medium Chrome Cast Grinding Balls

Our medium chrome cast grinding balls balance hardness, toughness and wear life for cost-effective performance under moderate grinding conditions.

Key Specifications

  • Hardness: HRC 48–52
  • Available Sizes: φ4.98–130 mm
  • Manufacturing: Medium-frequency furnace melting and metal-mold casting
  • Heat Treatment: High-temperature tempering

Applications

  • Cement Clinker Grinding
  • Medium-Hard Ores
  • Coal Grinding
  • Limestone Grinding
  • Building Materials
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

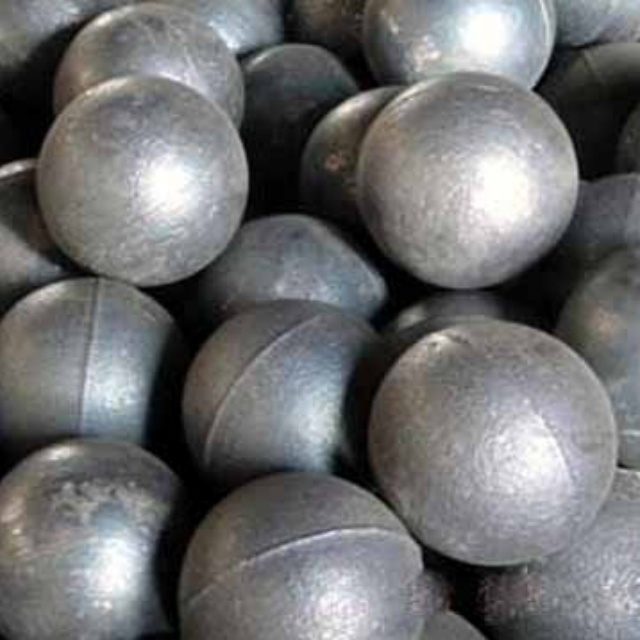

Medium-chromium Cast Steel Balls

1. Balanced performance:
The wear life is significantly longer than that of low-chromium steel balls, whilst the toughness is superior to that of standard high-chromium balls; striking a balance between hardness and impact resistance, they are less prone to brittle fracture or chipping, making them a cost-effective grinding medium that falls between low-chromium and high-chromium variants, with a HRC hardness of 48–52. They undergo high-temperature tempering to eliminate casting stresses and reduce the risk of cracking during subsequent use.
2. Manufacturing Process and Internal Quality:
Smelted in a medium-frequency furnace and cast using metal moulds, these balls exhibit minimal internal porosity and porosity defects, with a small hardness gradient ensuring minimal variation in properties between the surface and core. Strict control over sulphur and phosphorus impurities reduces sources of brittleness, resulting in uniform and gradual wear that maintains a stable ball size distribution within the mill and reduces the frequency of ball replenishment.

3. Advantages in Operating Conditions:

Suitable for both dry and wet grinding; suitable for the grinding of cement clinker, medium-hardness ores, coal grinding in power stations, limestone, non-metallic minerals and building materials. Compared to low-chromium balls: lower wear and longer service life; compared to high-chromium balls: lower procurement costs and reduced impact on liners, making them suitable for conditions involving moderate wear and moderate impact; not suitable for highly corrosive slurries or the coarse grinding of ultra-hard heavy ores.
4. Delivery and Quality Control:
A full range of sizes from Φ4.98 to Φ130 mm is available, supporting mixed batches of different sizes; chemical and hardness test reports can be provided for each batch; export packaging includes tonne bags and steel drums; bulk supply is available with stable delivery lead times.
ElementContent RangeDescription
C (Carbon)2.0–3.2Ensures hardness and wear resistance; too high carbon reduces toughness, too low results in insufficient wear resistance
Si (Silicon)0.4–1.2Deoxidizes molten iron, improves casting fluidity
Mn (Manganese)0.6–1.5Refines grains, improves impact toughness
Cr (Chromium)4.0–8.0Core alloying element; distinguishes low-/medium-/high-chromium grades; forms a large amount of hard carbides to enhance wear resistance
P (Phosphorus)≤0.07Harmful impurity; strictly controlled to prevent material brittleness and cracking
S (Sulfur)≤0.05Harmful impurity; reduces risk of brittleness and chipping
